vMix Live Production System
Explore detailed specifications below
LPD-325-790V
vMix Live Production Systems
vMix Go

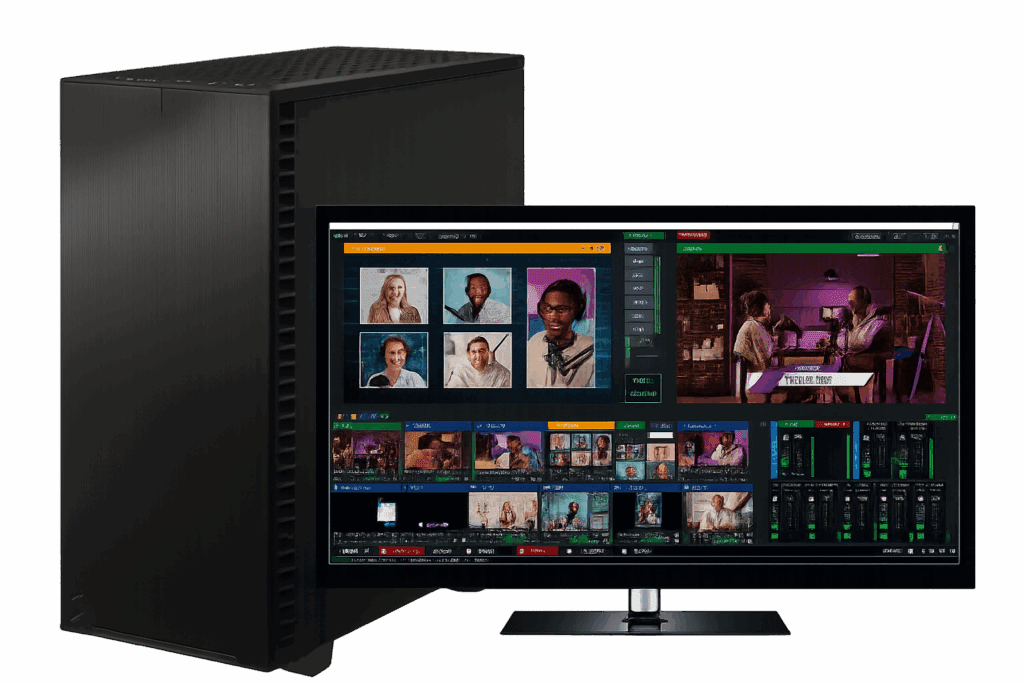

vMix is a complete live video production and live streaming software solution. Create, mix, switch, record, and live stream professional live productions. Support for inputs including Cameras, IP Cameras, Video Files, Images, NDI, SRT, Virtual Sets, Titles, Audio, Instant Replay, Video Calls, Zoom Meetings and much more. The vMix 27 release has added to an already expansive feature list with direct Zoom Integration, Layer Designer, Audio Bus Manager, AV1 Streaming Support, two additional External Outputs and much more.
| LPD-325-690V-R | vMix Broadcast Production System (RUBY) |
|---|---|
| CPU | 1 x Intel Core i7 12700KF (12 Core) |
| vMix Version | Professional |
| Operating system | Microsoft Windows 11 Pro 64-bit |
| Memory / Internal Storage | 16 GB RAM / 1.0TB Pro NVMe |
| Ethernet, Wireless & Bluetooth | 1 x 2.5Gb Ethernet, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) - Bluetooth® v5.2 |
| Data interfaces | 4 x USB 3.2 Gen2 / 5 x USB 3.2 Gen1 / 8 x USB 2.0 1 x Thunderbolt™ (USB4®) Header |
| Graphics | RTX 5070 Ti Graphic Card - 16 GB GDDR7 - 2.45 GHz Boost Clock - DisplayPort - 3 x DisplayPort - HDMI |
| Video Files Supported | AVI, MP4, H264, MPEG-2, WMV, MOV and MXF |
| IP Video inputs /Outputs | 1000 x IP -NDI / SRT / 4 X SRT Out |
| HD-SDI Video Inputs / Outputs | Blackmagic Design 8 X HD-SDI/3G-SDI (In / Out Assignable) |
| Audio | Embedded audio & External audio input |
| Dimensions (H x W x D) | Medium Tower Case (D x W x H) 453 x 230 x 466.0 (mm) |
| Weight | 19.8 lbs (9 kg) approximate |
| Power supply | Single 750W Power Supply (Front to Back Airflow) |
| LPD-325-690V-R | vMix Broadcast Production System (TOPAZ) |
|---|---|
| CPU | Intel Core i9 (13th Gen) i9-13900KF - 24 Core 3 GHz Processor - 36 MB L3 |
| vMix Version | Professional |
| Operating system | Microsoft Windows 11 Pro 64-bit |
| Memory / Internal Storage | 32 GB RAM / 1.0TB Pro NVMe |
| Ethernet, Wireless & Bluetooth | 1 x 2.5Gb Ethernet, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) - Bluetooth® v5.2 |
| Data interfaces | 4 x USB 3.2 Gen2 / 5 x USB 3.2 Gen1 / 8 x USB 2.0 1 x Thunderbolt™ (USB4®) Header |
| Graphics | RTX 5070 Ti Graphic Card - 16 GB GDDR7 - 2.45 GHz Boost Clock - DisplayPort - 3 x DisplayPort - HDMI |
| Video Files Supported | AVI, MP4, H264, MPEG-2, WMV, MOV and MXF |
| IP Video inputs /Outputs | 1000 x IP -NDI / SRT / 4 X SRT Out |
| HD-SDI Video Inputs / Outputs | 8 X HD-SDI/3G-SDI (In / Out Assignable) |
| Audio | Embedded audio & External audio input |
| Dimensions (H x W x D) | Medium Tower Case (D x W x H) 453 x 230 x 466.0 (mm) |
| Weight | 19.8 lbs (9 kg) approximate |
| Power supply | 850-Watt 80 PLUS Gold Fully Modular ATX PSU (Front to Back Airflow) |
| LPD-325-690V-R | vMix Broadcast Production System (DIAMOND) |
|---|---|
| CPU | Intel® Core™ i9-10980XE Extreme Edition Processor 24.75M Cache, 3.00 GH |
| vMix Version | Professional |
| Operating system | Microsoft Windows 11 Pro 64-bit |
| Memory / Internal Storage | 32 GB RAM / 1.0TB Pro NVMe |
| Ethernet, Wireless & Bluetooth | 1 x 2.5Gb Ethernet, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) - Bluetooth® v5.2 |
| Data interfaces | 4 x USB 3.2 Gen2 / 5 x USB 3.2 Gen1 / 8 x USB 2.0 1 x Thunderbolt™ (USB4®) Header |
| Graphics | RTX 5070 Ti Graphic Card - 16 GB GDDR7 - 2.45 GHz Boost Clock - DisplayPort - 3 x DisplayPort - HDMI |
| Video Files Supported | AVI, MP4, H264, MPEG-2, WMV, MOV and MXF |
| IP Video inputs /Outputs | 1000 x IP -NDI / SRT / 4 X SRT Out |
| HD-SDI Video Inputs / Outputs | DeckLink 8K Pro; 4 X 12G-SDI (In / Out Assignable) |
| Audio | Embedded audio & External audio input |
| Dimensions (H x W x D) | Medium Tower Case (D x W x H) 453 x 230 x 466.0 (mm) |
| Weight | 19.8 lbs (9 kg) approximate |
| Power supply | 850-Watt 80 PLUS Gold Fully Modular ATX PSU (Front to Back Airflow) |
| Options | |
|---|---|
| 00 | Upgrade vMix 4K to vMix Pro |
| 01 | Professional Replay Controller |
| 02 | Production Controller |
| 03 | (Dual Thunderbolt™ 4 ports (USB-C®), with support for up to five devices in a daisy chain) |
| 04 | NDI, SRT & SDI, Bidirectional Encoders |
| 05 | PTZ Cameras |
| 06 | Audio Interface (Non-Embedded) |
| 07 | Rackmount Option |
 |
LPD-325-790V

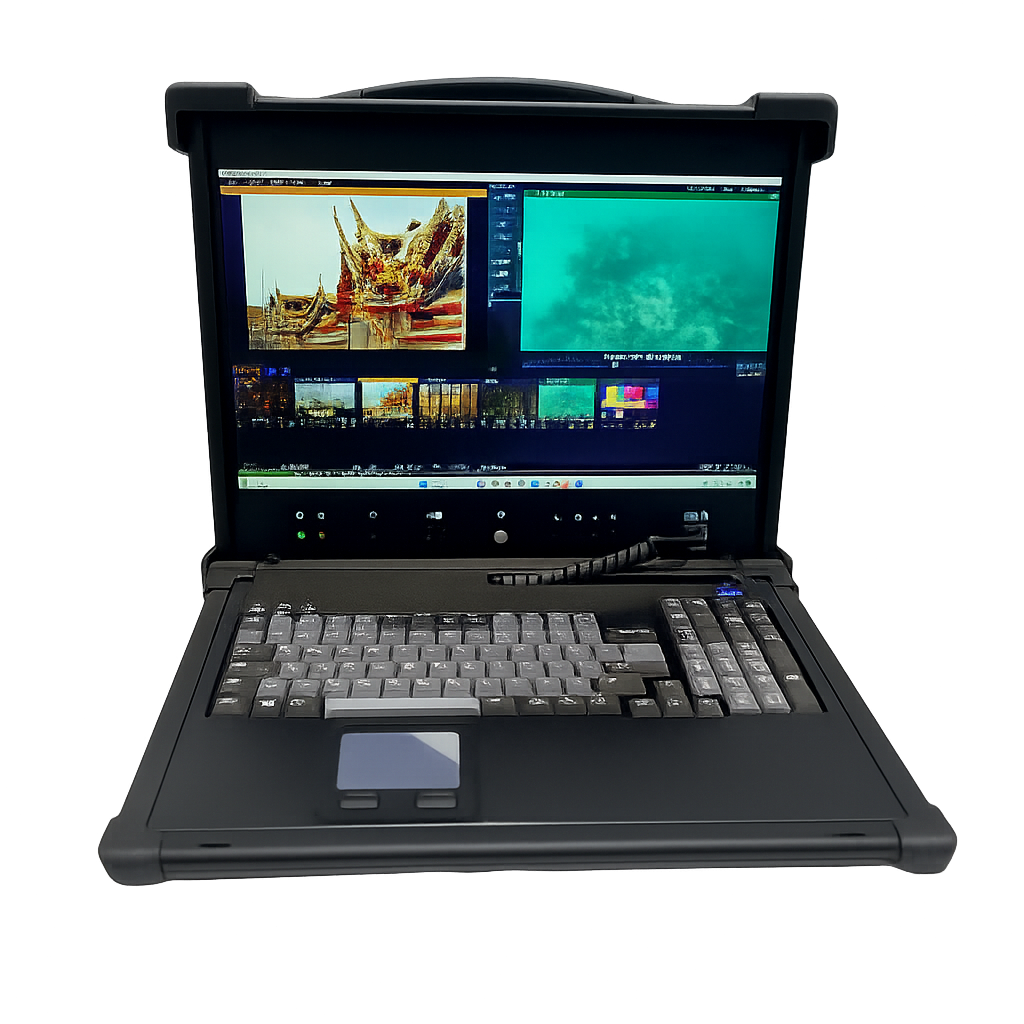

vMix Road Kit
• Rugged Aluminum Construction with rubber corners
• 17.3” LCD display, 1920x 1080 resolution
• Anti-reflection tempered strengthen glass
• Speakers - Built-in amplified 2x 3W speakers
• Multi-language industrial keyboard with touchpad
• Temperature Operating 0°C~50°C Non-Operating -20°C~60°C
• Relative Humidity Operating 0°C~50°C Non-Operating -20°C~60°C
• Approval CE, FCC, RoHS
Audio Interfaces

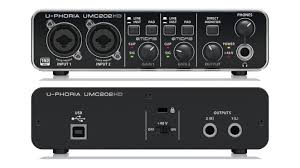

UMC202HD
U-Phoria USB Audio Interface with MIDAS Microphone Preamplifiers
Dimensions (H x W x D) 46.45 x 170 x 125 mm (1.8 x 6.7 x 4.9")

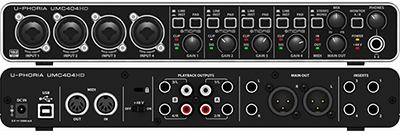

UMC404HD
U-Phoria USB Audio/MIDI Interface with MIDAS Microphone Preamplifiers
Dimensions (H x W x D) 45.81 x 292 x 130 mm (1.78 x 11.5 x 5.1")
